Spray Painting Machine/Spraying Machine
Application:
1.It is automatic paint, the paint film evenly, film thickness can be precisely controlled, very productive.
Available for UV,PU,PE,NC paint, the paint can be recycled.
2.The sealed paint room with air exhaust system can prevent dust entering and make high quality painting.
Feature:
1. belt-type roller conveyor, high-efficiency automatic spray paint machine for high-speed feed state of high-quality spray;
2.Photoelectric induction system for detecting the length of incoming workpieces to control the time and range of painting.
3. Fire-proof lighting systems are installed in the interior of the spraying room.
4. Humanized graphical interface to facilitate the input of various working and equipment parameters;
5.Exquisite appearance and internal processing structure, very good accessibility;

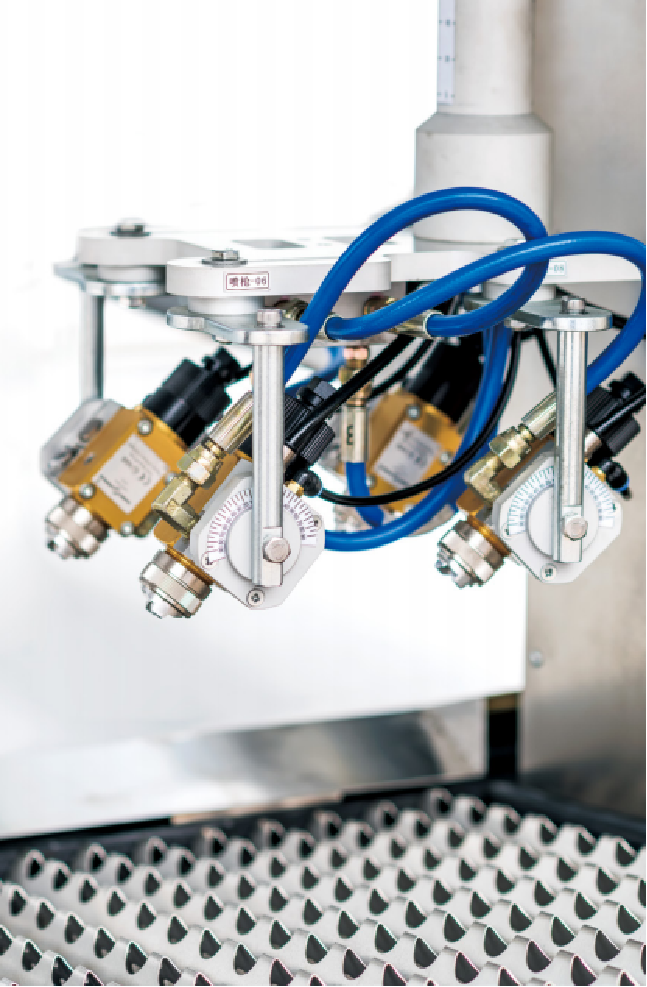

6.Spray pump Apply to three surfaces of strip work pieces such as door frame, frame, furniture fittings, kick line, plastic steel and wood plastic line, and spray continuously and automatically for various lacquer materials such as PU、NC、PVC、UV、 waterborne paint and
fluorocarbon paint
fluorocarbon paint
Spray Painting Machine/ Spraying Machine Technical Data
(All Machine Both can be customize it as client require)
| Model | ISPM200 | ISPM400 |
| Paint Width | 10-200mm | 10-400mm |
| Working Thickness | 10-100mm | 10-100mm |
| Min. Working Length | 700mm | 700mm |
| Feeding Speed | 0-50m/min | 0-50m/min |
| Gun Qty | 3pcs | 3pcs |
| Working Air Pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Total Power | 2.25kw | 2.25kw |
| Dimension (Length*Width*Height) | 3500*1600*2000mm | 3500*1700*2560mm |
| Net Weight | 1500kg | 1600kg |
Packege
All Machine Both can be customzied, welcome inquiry directly. 24Hours Service.
