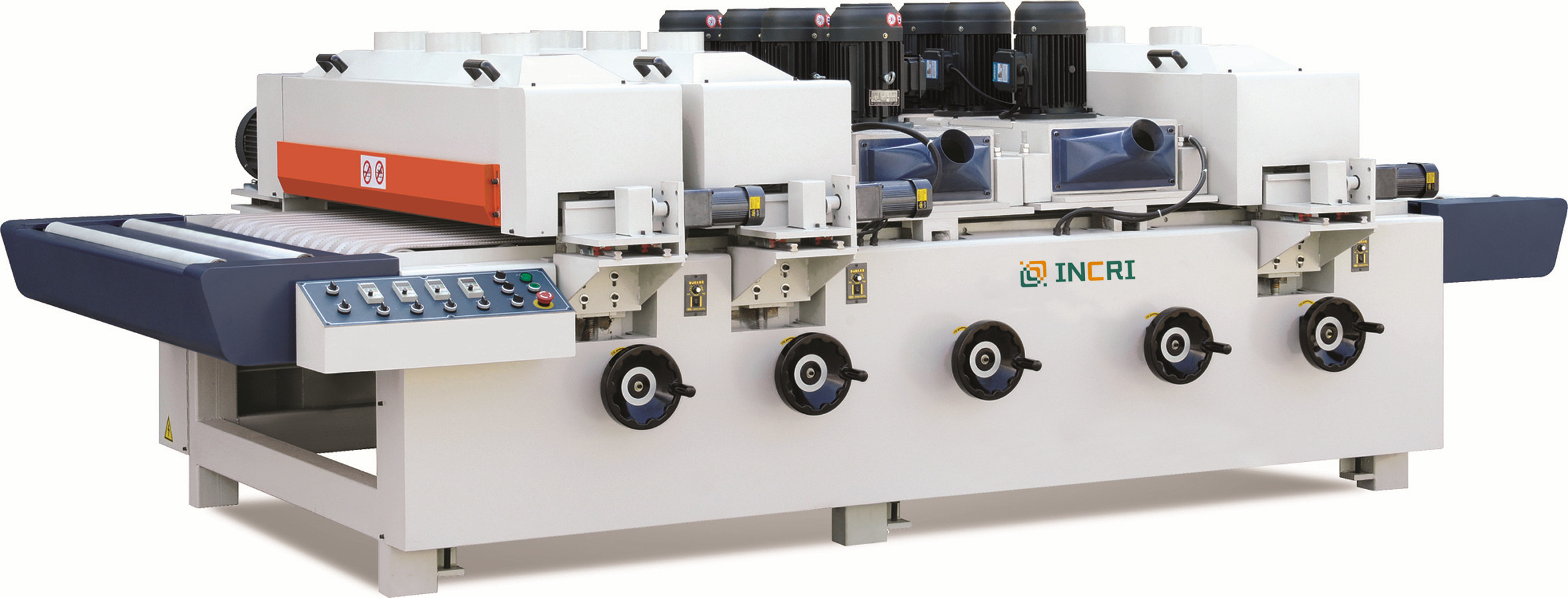

Polywood Decorative wire Brush Machine 5 heads (Relief Drawing Machine)
Application:
The machine is mainly used for solid wood panels, flooring, solid wood panel, brush the surface of groove, wire drawing, natural wood brush, and the wood board, synthetic materials, textures, nap etc..
After processing the wood surface has a natural wood grain concavo-convex, main and collateral channels clear, effect of the follow-up processing more prominent.
Feature:
1. the max working width of belt ,600mm, 1000mm,1300mm,
2.the actual processing thickness:0.3-110(160)mm
3.the spercific function is different,so the configuration is little different
4. The lower supporting roller or belt feeding mode, feed speed can be adjusted
5. Feed table structure of multiple choice, the height can be accurately lifting or remain unchanged
Advantage:
A. This machine is designed for archaize floor, furniture, table-board, handicraft, the plane surface rivet and special design of a new generation of products, processd by this machine ,the plane surface is skid-free , stereoscopic and beautiful .
B. Conveyor belt /drawing roller/ polishing roller use important motor independent and the feeding use frequency conversion. Which make plate surface effect is better, the machine can be more precise control.
C.Drawing roller ,polishing roller can be easily removed or re-arranged .positioning precision, outfit calculated by using the high accuracy, easy to operate and readings.
D.Disc brush have swing device , board texture ‘s stereo feeling more apparent. Each group of disc brush can independently up and down..
E.According the different board texture ,the different model deploy different numbers disc brush, drawing rollers, polishing rollers.
steel brush machine for WPC or solid wood
mainly to clean the panel surface.

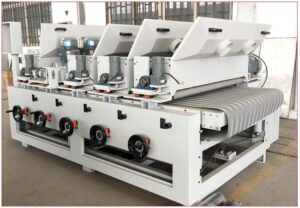

Wire Brush Machine Photo ( All machine both can be customize)
Wire Brush Machine Technical Data
| Place of Origin | Shandong, China |
| Condition | New |
| Machine Type | wire brush machine |
| Core Components | PLC, Engine, Motor |
| Warranty | 1 years |
| Weight (KG) | Different weight as machine different configuration |
| Applicable Industries | Hotels, Building Material Shops, Machinery Repair Shops, Farms, Retail, Construction works |
| Function | sanding&drawing for furniture,wood plastic,floors |
| brush material | Steel and Nylon |
| working width | 600/1000/1300mm |
| Plate working thickness | 2-110(160)mm |
| Plate production length | >=500mm |
| Conveyor belt speed | 5-30m/min |
| Conveyor belt motor | 1.5kw/2.2kw |
| Wood material | oak,teak,pine,rubber wood,veneer etc |
Wire Brush Machine Final Product
Wire Brush Mahcine Package
FAQ
. Do you offer installation?
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, roller coater, painting machine, UV dryer can be provided as well.
